SAKURA FGX - Formula Generation X
Suspension - F1 inspired

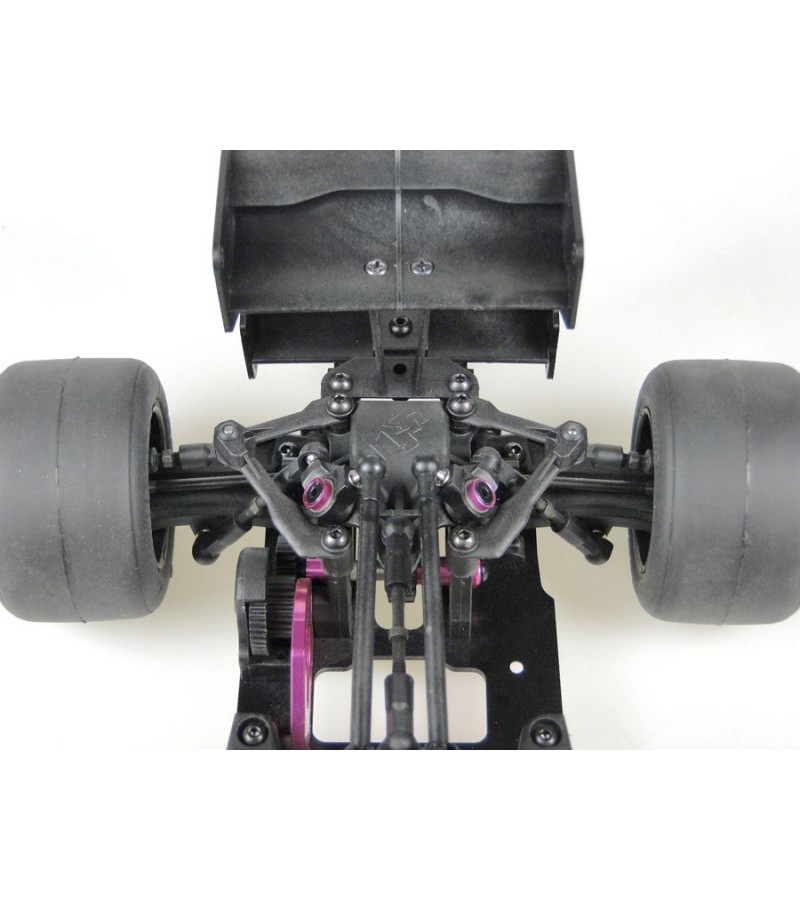

The FGX employs both front and rear independent suspension systems which truly distinguishes itself from all current Formula 1 chassis currently available. The rear end uses laydown oil filled coil spring dampeners similar to that found in today's real F1 cars. The entire rear suspension system is fully adjustable with the same adjustability you'd find in today's touring cars, namely toe in/out, camber, anti roll bars, caster, track width etc.
Drivetrain

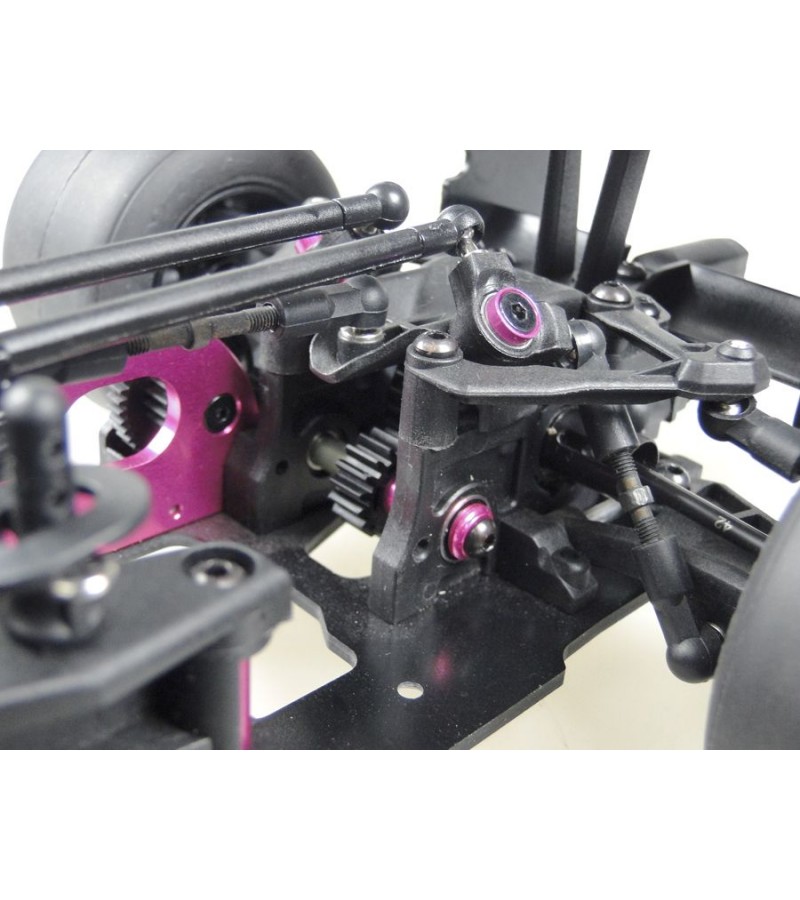

The FGX features a mid-rear mounted motor virtually identical to its real life counterpart giving it the best weight distribution possible. Since a direct drive system would not be suitable for a rear independent suspension system, the FGX uses a similar 3 gear gearbox design found in the race proven 3 Racing Sakura FF allowing it to position the motor in the very center of the chassis. This also provided the added ability for the FGX to be equipped with a more robust gear diff or a traditional ball diff unit and the use rebuildable universal driveshafts with protective blades.
Battery Compartment
Longitudinally mounted battery for optimal weight distribution, battery compartment features easy access system, changing batteries only requires the loosening of one screw and has been designed to accept most high capacity lip batteries.
Wheels
The FGX will use its own wheels with its face pattern modeled after the Ferrari F60 plus a more realistic offset allowing it to fully optimize it's independent suspensions and better shock absorption, the FGX will feature wheels for both foam and rubber tires catering for all markets and race conditions.
Rubber Tires sold seperately.
You Will Need
a. 2 Channel Radio System
b. Low Profile Steering Servo (Refer to Manual for Compatible Servos)
c. Electronic Speed Controller
d. 540 Type Motor and 48 Pitch Pinion Gear
e. Rubber Tires and glue (Refer to Manual for Compatible Tires)
f. Polycarbonate Paint for Body Shell
g. Battery and Charger
h. Assembly Tools
Recommended Products from "You Will Need” List
Low Profile Servos
Futaba* S9550, S9551, BLS551
Sanwa* SDX-801, SRG-BL, SRG-BLS, SRG-BLX, SRG-BLX Type R, SDX-701, SX-131
KO Propo* PDS-2413ICS
Savox* SC-1251MG
Rubber Tires
Ride Japan*
No. 24005 Front - Medium
No.24006 Front - Hard
No. 24007 Rear – Med
No. 24008 Front – Super Soft
No. 24009 Front – Soft
No. 24010 Rear – Super Soft
Disclaimer:
*The product names and numbers are provided as reference only and are subject to change without prior notice, all brands, product names and trademarks featured are the property of their respective companies and trademark holders and are in no way affiliated with 3 Racing or World Space CAD Co.
3 Racing do not in any way endorse or sponsor any of the above brands, products or trademarks and vice versa.
Please note some parts shown in the photos within this article are prototypes or optional upgrades, actual production kit may consist of different parts. Electronics not included. |
