Specifications

Mystery 1/10 BL System (Sensored) 1/10 On-road normal race,1/10 Off-road competitive race (Modified group) HL-SS120A+6.5T@5200KV
Mystery 1/10 BL System (Sensored) 1/10 On-road normal race,1/10 Off-road competitive race (Modified group) HL-SS120A+6.5T@5200KV
Mystery 1/10 BL System (Sensored) 1/10 On-road normal race,1/10 Off-road competitive race (Modified group) HL-SS120A+6.5T@5200KV (HL540-3650) RC Car

Combo ESC Motor Program Card Main Application
COMBO-X4A HL-SS120A 6.5T@5200KV (HL540-3650) YES 1/10 On-road normal race,1/10 Off-road competitive race (Modified group)


1.Combo Inlcuded:
1.1 ESC: 1:10 SS 120A ESC
1.2 Motor: Sensored 6.5T@5200KV(HL540-3650 Motor)
1.3 Program Card: Yes
1.4 USB Adapter : No
2.The Specification of ESC:
2.1 Output : Cont.Current 120A, Burst Current 760A
2.2 Resistance : 0.0003ohm
2.3 Suitable Car : 1/10 Car
2.4 Suitable Brushless Motor: 2S Lipo ≥3.5T(on-road)
2S Lipo ≥5.5T(off-road)
3S Lipo ≥6.5T(on-road)
3S Lipo ≥8.5T(off-road)
(3650 Brushless Motor)
2.5 Battery Cell : 5-10 Cell Ni-xx(NiMH/NiCd) or 2-3 Cell Lipo
2.6 BEC Output : 6V/3A
2.7 Motor Type : Sensorless and sensored Brushless Motor
2.8 Dimension : 30*43*39mm(L*W*H)
2.9 Weight : 102g
3.The Specification of motor:

Model KV Diametermm Lengthmm (Without Shaft) Shaftmm Shaft Lengthmm Weightg Special Notes
6.5T 5200 35.8 52.5 3.17 15 165 fixed timing


Each of the sensored motor is provided with a sersor wire as its accessory.
4. Features:
4.1 Enhanced throttle response, excellent acceleration,strong brakes and throttle linearity
4.2 Using advanced software interface to set up or update the software or using programming card to make adjustments
4.3 Using programming card to program forward or reverse throttle limit
4.4 Using programming card to program braking percent
4.5 Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor blocked protection
4.6 Compatible with NOVAK, LRP , ORION Sensored brushless motor

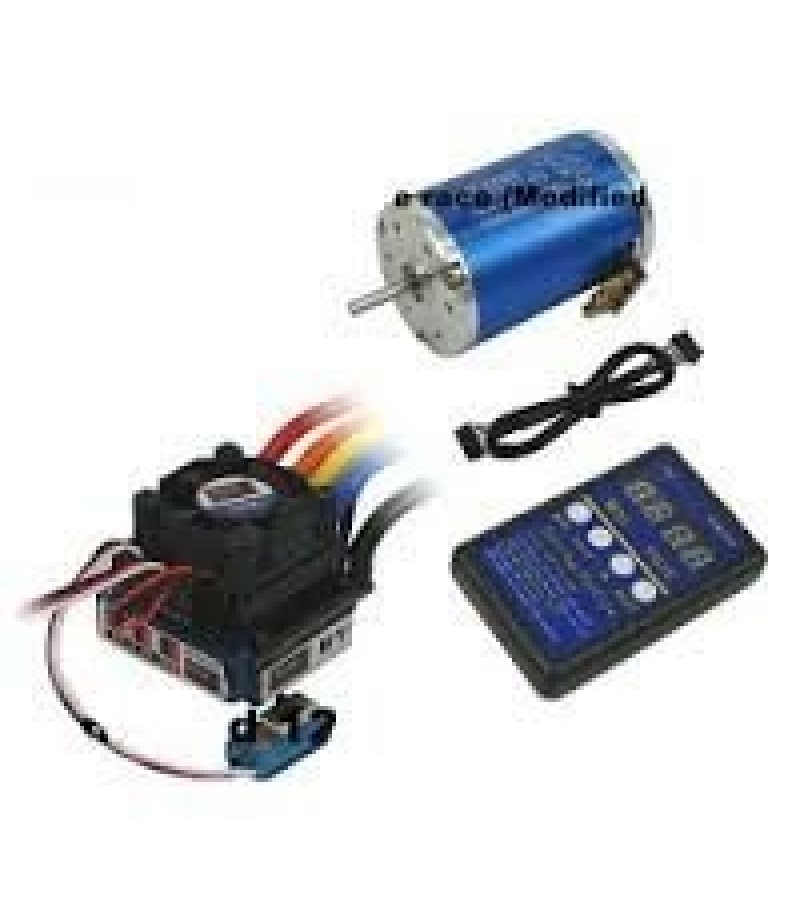

Packet content:
1x Fire Dragon 1/10 SS120A Sensorless ESC
1x Fire Dragon Sensored 6.5T@5200KV HL540-3650 Motor
1x Program Card
100% brand new

1/10 BL System (Sensored)
